500 kva Diesel Generator in Best Price
Diesel Range of Gensets
Gas Range of Gensets
Diesel Generator Range > 500 KVA Get Price Quotes
Lowest life cycle cost

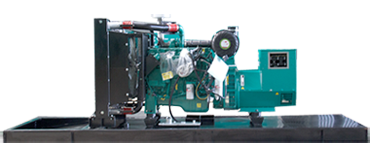

K19 Series 500KVA Diesel Generator design features have made Cummins® diesel, the standard for comparison of operating economy, reliability and long life. When all cost factors like initial purchase, fuel, lube oil, maintenance and overhaul are considered, the bottom line will show that this Cummins ® ‘K19 series’ will deliver the lowest life cycle cost.

Heavy duty, durable and emission compliant
Cummins ® ‘K19 series’ 500kva diesel engine comes with heavy duty features, bigger size camshaft, optimized turbo-matching, electrical STC injectors and is yet compact in size with optimum power to weight ratio making it the obvious choice for your long-term power needs.

The Diesel Generator powered by the reliable Cummins ® ‘K19 series’ diesel engine meets stringent exhaust emission tests as per MOEF norms without sacrificing fuel efficiency at normal operating loads.

Silent Diesel Generator
Cummins ® 500 kVA Diesel Generator enclosure is so designed as to have optimum performance and serviceability over the complete operating range. The enclosuree is compact with integral fuel tank and is designed for ease in maintenance. The powder coated enclosure is manufactured on latest CNC machines to ensure superior finish and durability.

Alternator
Stamford brushless alternator
› Self-excited, self regulated
› Class ‘H’ insulation
› Salient pole revolving field
› Single bearing
› Automatic voltage regulator

Accessories
Stamford brushless alternator
› Silencer suitably optimized to meet stringent sound emission standards laid down by MOEF / CPCB
› Base rail with integral fuel tank (520 litres capacity) is provided with drain plug, air vent, inlet and outlet connection, level indicator, manhole etc.
› Sub-base fuel tank of 700 litres capacity
› 2 x 12 V dry, uncharged batteries with connecting leads and terminals

Acoustic enclosure
› Specially designed to meet stringent MOEF/ CPCB norms of 75 dBA @ 1mtr at 75% load under free field conditions
› Designed to have optimum serviceability
› Air inlet louvers specially designed to operate at rated load even at 50 deg C air inlet temp.
› Made on special purpose CNC machines for consistency in quality and workmanship
› Powder coated for long lasting service life and superior finish
› With UV resistant powder coating, can withstand extreme environments
› Use of stainless steel hardware
› Insulation material meets exacting IS 8183 specifications for better sound attenuation

Specification sheet 400 kWe, 500 kVA Prime Diesel Generator

Single source power assurance
Design, manufacture and testing of engine, alternator, enclosure and other accessories is done by Cummins India/Channel partners (Powerica Limited) for that optimum performance integrity and is backed by countrywide product support net work with single source responsibility for the entire package.

Standard scope
Engine: Cummins® ‘K19 series’ direct injection, water cooled engine, 6 cylinder, in-line, 4 stroke, rated at 1500 RPM, conforming to ISO 3046/BS 5514 has the following specifications:

The scope of supply includes:
› Cummins PT Fuel Pump
› Electrical Step Timing Control (ESTC) injector
› Holset turbocharger, pulse tuned exhaust manifold, stainless steel exhaust flexible connection
› Radiator or heat exchanger, coolant inhibitor, Low Temperature After cooling (LTA)
› Plate type lube oil cooler
› Full flow paper element filters - fuel, lube oil and by-pass
› Dry type replaceable paper element air cleaner with restriction indicator
› Flywheel housing & flywheel to suit single bearing alternator
› Starting motor – Electric, battery charging alternator
› Electronic control panel with Electronic Governor (ECPG)
› Engine protections (trip)
› High water temperature
› Low lube oil pressure
› Overspeed
› Low coolant oil level (alarm)
› First fill lube oil

Control panel
Powder coated control panel manufactured with 14/16 gauge CRCA sheet provides:
› MCCB of suitable rating with overload and short circuit protection
› Voltmeter and ammeter with selector switch
› KW/PF meters
› Frequency meter
› KWh meter
› Indicating lamps for “Load On” and “Set Running”
› Current transformers
› Aluminium busbars of suitable capacity with incoming and outgoing terminations
› Instrument fuses duly wired and ferruled

Optionals

Engine
Heavy duty air cleaner, heat exchanger, lube oil/Coolant heater with thermostatic switch

Alternator
Thermistors, PMG excitation, space heater

Control panel
"Power Command ®” control panel for micro processor based metering, monitoring & auto synchronising control system, AMF control panel, battery charger, remote/auto start panel, auto/manual synchronizing panel, audio/ visual annunciation for faults

Others
Mobile sets with canopy
